color series

color series


* More Power Generation

Compared with other photovoltaic technologies, solar powerglass stands out for its unrivaled power geneeration performance in hot and humid environment.

* Low Power Loss from Shielding

Electricity generation in the solar power glass is little affected by shielding, and coupled with low hot spot effet and power generation loss,service life and safe use are guaranteed.

* Safe and Environment-friendly

 Environment-friendly, safe, energy-efficient and benefidial to the reduction of greenhouse gas emissions, the solar power glass is the only building material that can create value for the owner .

* Better Performance under Low-light condition

 The solar power glass has strong light absorption capacity and can generate electricity in the early morning and evening, or during clouy and rainy days and a high degree of match with the solar spectrum enables better performance in power generation.

* Adaptation to Harsh Environment

The solar power glass can be installed and used on mountains, in deserts and for coastal defensed and it is a marble building material that can generate electricity.

* Perfect Arhitectural Integration

Elegant in appearance , diverse in styles and affordable in price ,the solar power glass can be customized in a broad variety of colors and patterns and may be installed for farm house at very economical costs.


产品详情


car shed 8.jpg

ELECTRICAL DATA (STC)

ModelCOM-CBS1-BLUECOM-CBS1-PURPLECOM-CBS1-RED
Nominal Power Pmax (W)210220130
Power Tolerance %0~30~30~3
Voltage at Pmax Vmpp (V)140140140
Current at Pmax Impp (A)1.521.60.97
Open Circuit Voltage Voc (V)175175175
Short Circuit Currennt Isc (A)1.771.861.13

STC Irradiance1000W/m2 Cell temperature 25℃,  Air mass AM1.5

MECHANICAL DATA

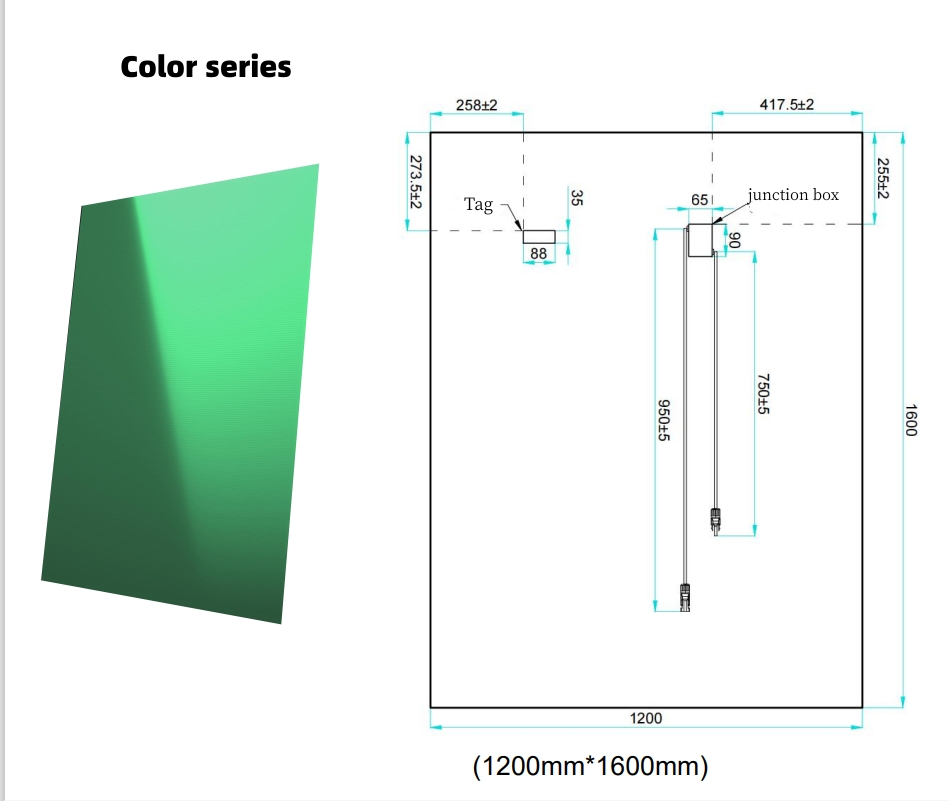

Module Dimension1600*1200*31mm(junction box included)
Thickness11 mm
Thickness with Junction Box 31 mm
Area1.92
Weight50kgs
Cable Cross Section2.5mm²,+1000/-1000
Bypass DiodeHY6A10S
Front Glass3.2mm color semi-tempered glass +3.2mm ultra white folat glass
Back Glass3.2mm semi-tempered glass
Cell TypeCdTe thin film semi-conductor
Package30pcs/pallet

OPERATING CONDITION


Maximum System Voltage1500 V
Limiting Reverse Current Blue 2.6 A , Purple 2.8A, Red 1.7A
Operating Tempeature Range-40℃~+85℃
Load Rating(wind/snow)2400Pa/3600Pa
Hail TestPassed
Waterproof RatingIP67

TEMPERATURE CHARACTERISTICS


NOCT( Nominal Operating Cell Temperature)42.3±2
Temperature Coefficient of Pmax-0.189%/
Temperature Coefficient of Voc-0.396%/
Temperature Coefficient of Isc+0.061%/℃
